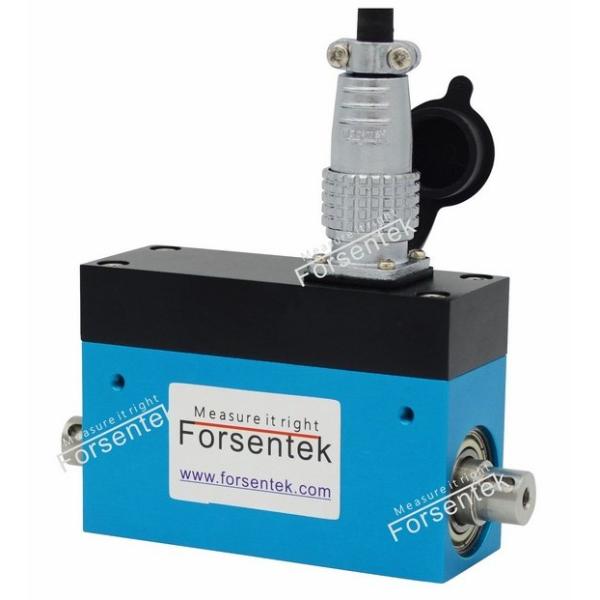

Rotating torque measurement device 0-5Nm shaft to shaft dynamic torque meter

Product Categories
Forsentek Co., Limited
Contact Now

Rotating torque measurement device 0-5Nm shaft to shaft dynamic torque meter

Brand Name : Forsentek

Model Number : FY02

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1900pcs/month

Delivery Time : 3~20 working days

Packaging Details : 1pc/box

Usage : Measure torque

Theory : Rotary torque sensor

Output : Analog Transducer

Torque direction : Clockwise&CCW

Configuration : Shaft-to-shaft

Contact Now

Rotating torque measurement device shaft to shaft rotary torque meter
Rotating torque measurement device 0-5Nm shaft to shaft dynamic torque meter
Features

  • CE approved
  • Strain gauge technology,analog output
  • Shaft to shaft connection
  • Torque measurement in both clockwise and counterclockwise direction
  • Up to 4000RPM
  • Rotating shaft torque measurement,motor torque measurement

Rotating torque measurement device 0-5Nm shaft to shaft dynamic torque meter
Specifications

Capacity

0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM
Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.02% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP40
Material of element Stainless steel
Cable

Ø5*3000mm 4-core shieded cable

with mating connector
Wiring code

Red--Excxcitation+ Black--Excitation-
Green--Signal+ White--Signal-

Rotary torque meter for rotating torque measurement
Rotating torque measurement device 0-5Nm shaft to shaft dynamic torque meter

A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Rotary torque sensor is designed to measure rotating torque like motor torque, rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque which is also known as reaction torque.

Rotating torque measurement device 0-5Nm shaft to shaft dynamic torque meter

Rotating torque measurement device 0-5Nm shaft to shaft dynamic torque meter

Digital meter can be used to display the torque value,digital indicator FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.

Rotating torque measurement device 0-5Nm shaft to shaft dynamic torque meter

Dimensions(milimeter)

Rotating torque measurement device 0-5Nm shaft to shaft dynamic torque meter

Click here to download datasheet
